HingeMate350 Entry and Passage Door Hinge Jig

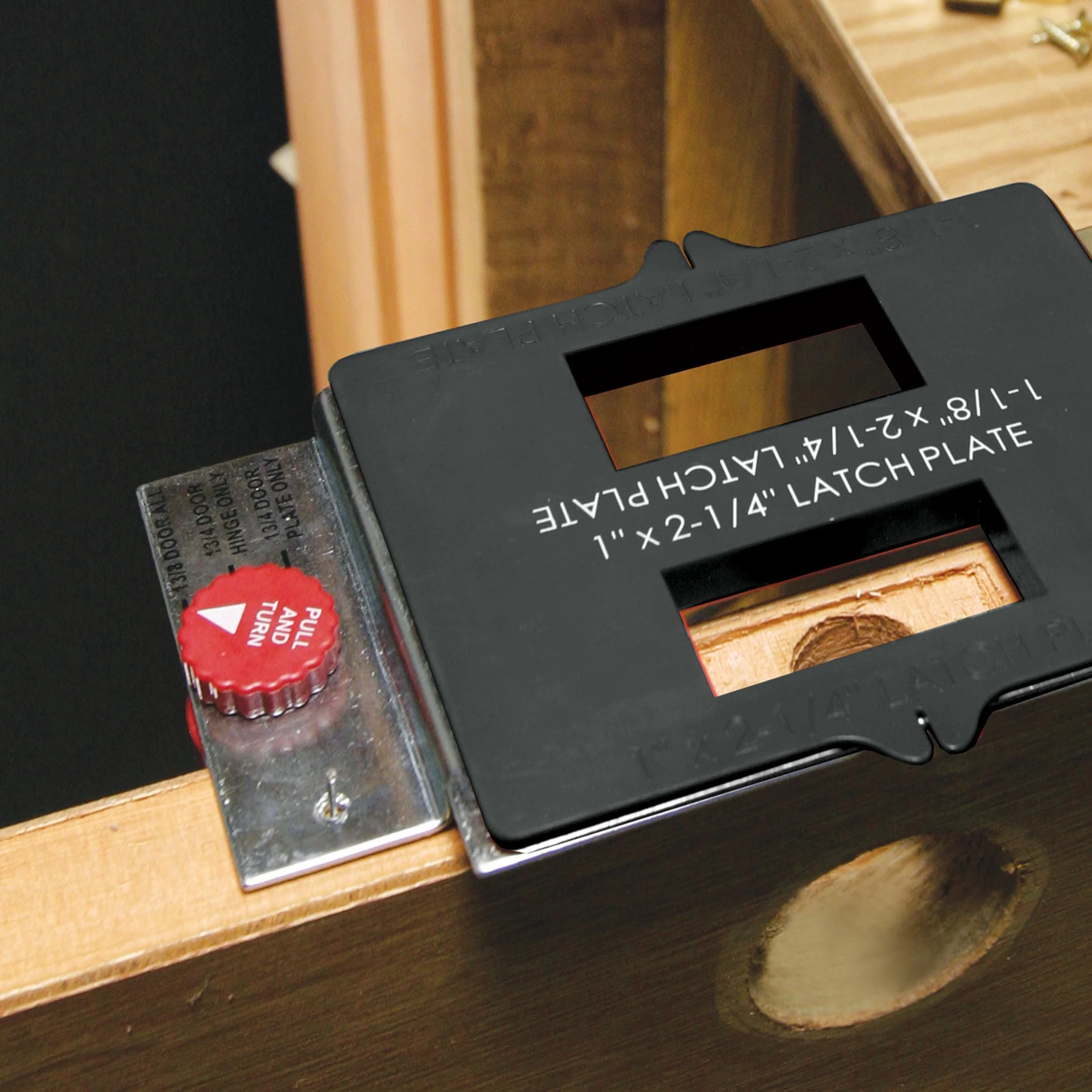

Increase security and privacy in your home by replacing interior and exterior doors without damaging the jamb or door frame with the Milescraft® HingeMate350 Door Mortise Kit. Door Mortise Kit includes templates for 2-1/2", 3", 3-1/2", 4" and 4-1/2" hinges; 1-1/8" x 2-3/4", 1-1/2" x 2-1/4" strike plates; 1" x 2-1/4", 1-1/8" x 2-1/4", and 1-1/8" x 2-3/4" latch plates. Sturdy steel frame adjusts from 1-3/8" to 1-3/4" doors and jambs. Includes durable carbide-tipped 1/2" router bit with bearing that eliminates the need for guide bushings, spring-loaded corner chisel for squaring routed corners and self-centering hinge bit.
Features:
- Templates needed to rout hinge, strike plate and latch plate mortises
- Centered tabs on each template ensure complete accuracy
- Sturdy steel frame adjusts from 1-3/8" to 1-3/4" doors and jambs
- Template frame can be mounted to both the door and the jamb
- Router bit with guide bearing eliminates the need for a bushing
- Self-aligning chisel included for mortising 90° hinges, strikes and latches
- Pre-drill perfectly centered holes for proper alignment of hinges with this spring-loaded, self-centering drill bit
- Easy Measure Guide is included to simplify standard industry placement of your door hardware
Specifications:
- Template Frame Material: Steel
- Template Material: ABS plastic
- Hinge Template Sizes:
- Strike Plate Template Sizes:
- Latch Plate Template Sizes:
- Router Bit Type: Tungsten carbide tipped 1/2" straight router bit w/ bearing
- Router Bit Bearing Outer Diameter: 5/8"
- Router Bit Shank Size: 1/4"
What's Included:
- (1) Steel Template Frame
- (1) 1/2Ëť Router Bit w/Bearing
- (1) 3.5Ëť Hinge Template
- (1) 2.5Ëť Hinge Template
- (1) 3Ëť Hinge Template
- (1) 4Ëť Hinge Template
- (1) 4.5Ëť Hinge Template
- (1) Latch Plate Template
- (1) Strike Plate & Latch Plate Template
- (1) T-Strike Plate Template
- (2) Mounting Screws
- (1) #8 (9/64Ëť) Hinge Bit
- (1) – Corner Chisel
