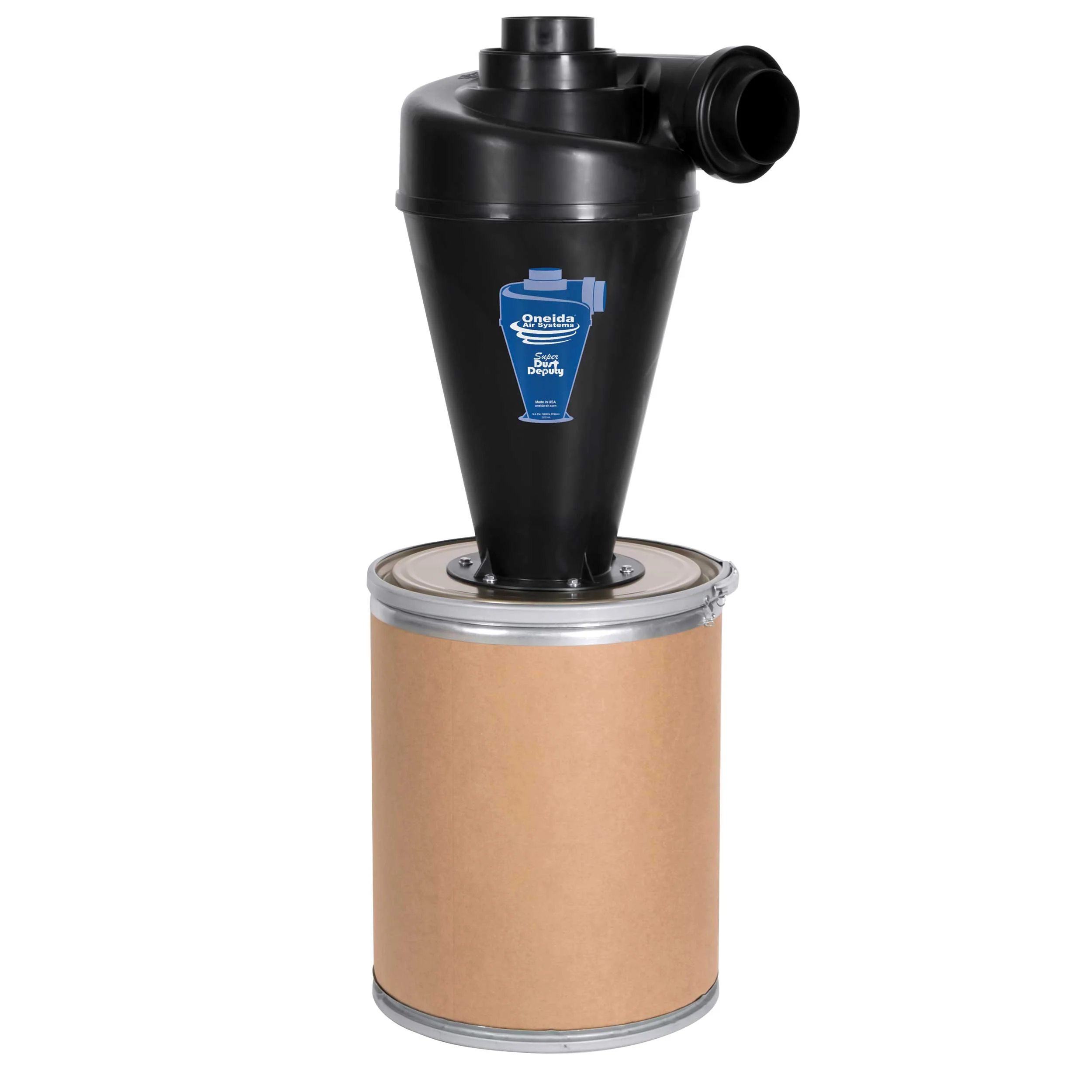

Super Dust Deputy 4/5 Deluxe Cyclone

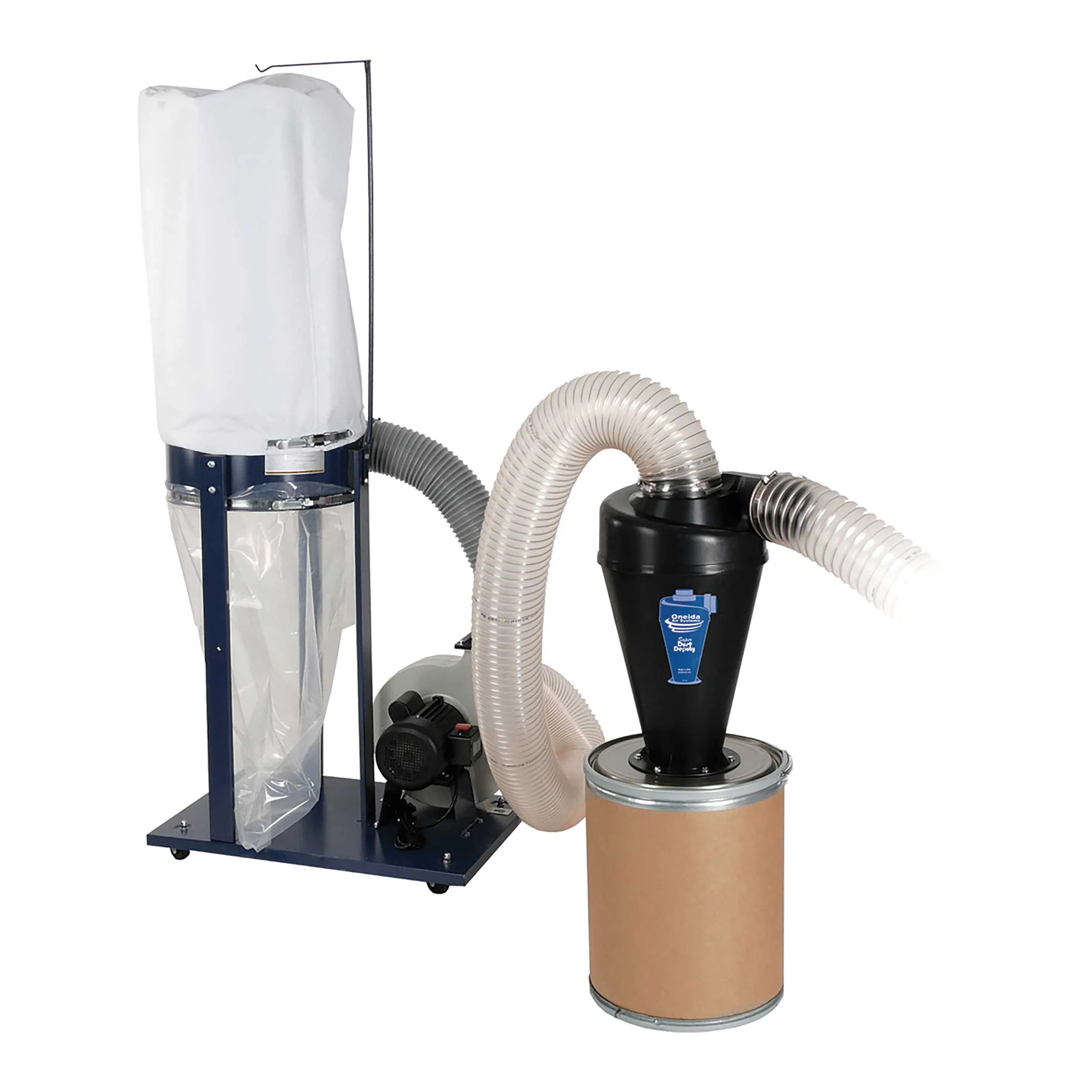

Use your existing blower to turn your inefficient, single-stage bag collector into a high efficiency, two-stage cyclone system that separates 99% of wood waste before it reaches the filter and contains it safely in a lightweight, 15-gallon fiberboard dust bin. The result – virtually no filter clogging or reduction in airflow. Connect this Super Dust Deputy® Deluxe 4/5 to your dust collector with either a 4" or 6" hose, and to your tools with either a 4" or 5" hose. Other benefits of this lightweight, Super Dust Deputy Deluxe kit include reduced maintenance and elimination of dusty bags to empty.

• 43-5/8" height with a 5" nominal inlet port and 6" nominal outlet port
• 4/5 Cyclone with included adapters offers 4" or 5" inlet (connects to your tools) and 4" or 6" OD outlet (connects to your collector)
• Injection molded black antistatic resin cyclone
• Compatible with almost any 1-3 HP dust collector
• Removes over 99% of dust and debris from airstream

• US Pat. #7282074 and #D703401
• Made in the USA

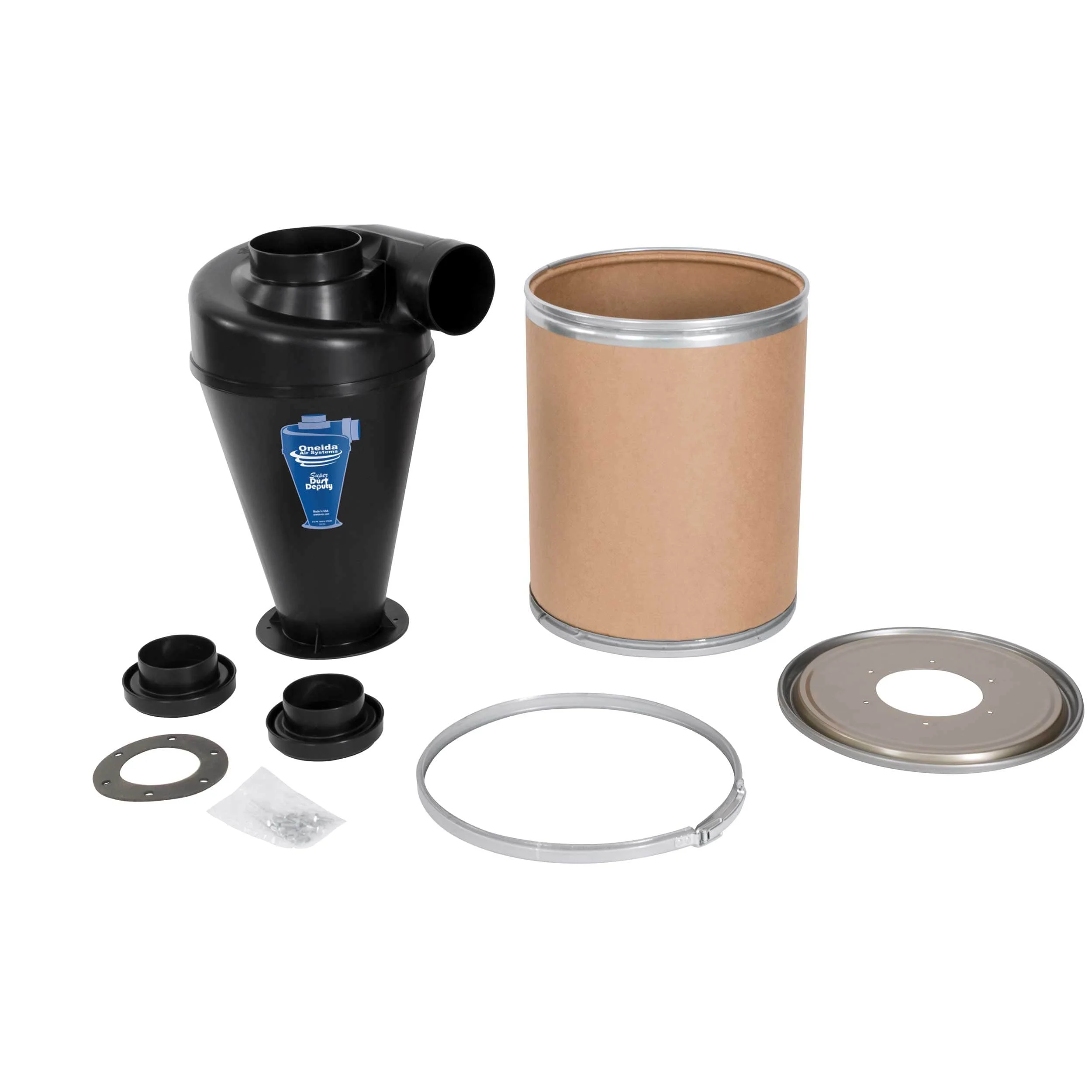

• (1) Oneida® Air Systems Static Dissipative Super Dust Deputy® 4/5 Cyclone Separator
• (1) 5" Nominal x 4" Nominal Inlet Port Adapter
• (1) 6" Nominal X 4" Nominal Outlet Port Adapter
• (1) Foam Gasket
• (1) Set of mounting hardware
• 15 gallon fiberboard dust bin with quick-release latch
