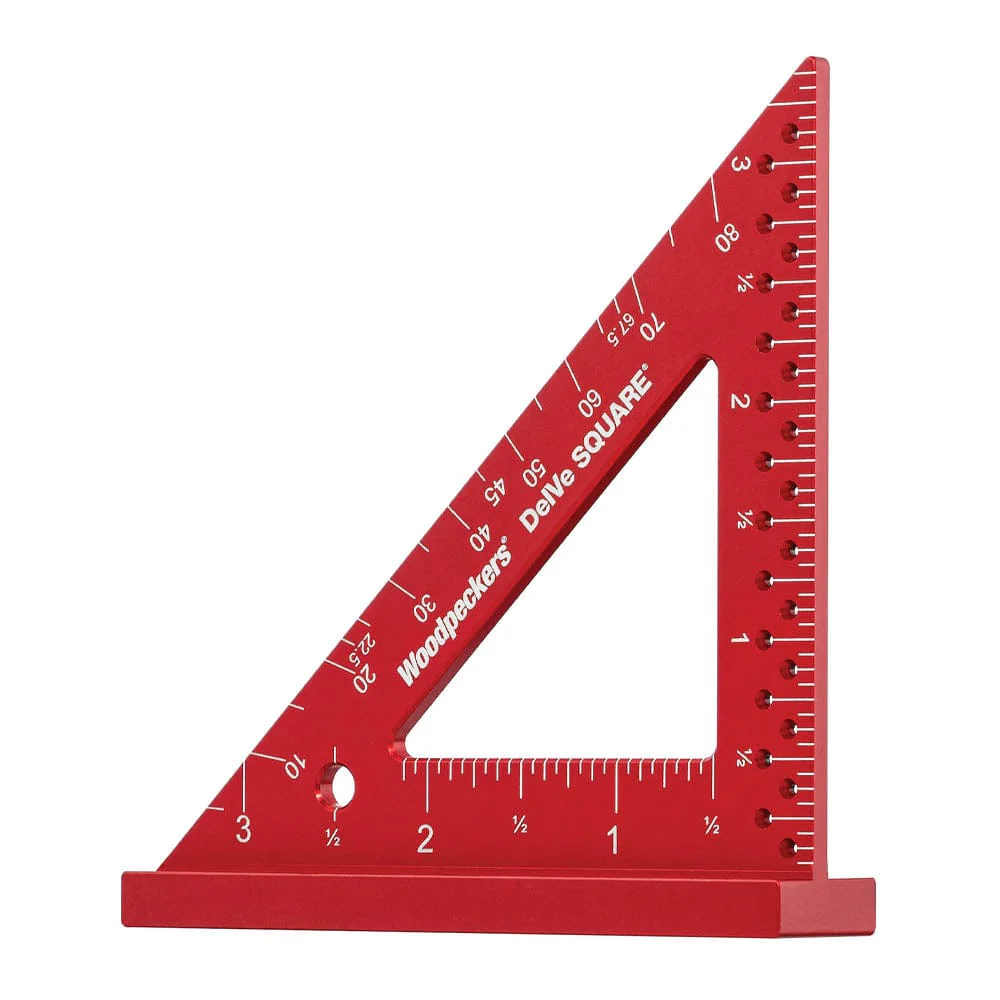

DelVe Square with Rack-It - Aluminum - 3-1/2"

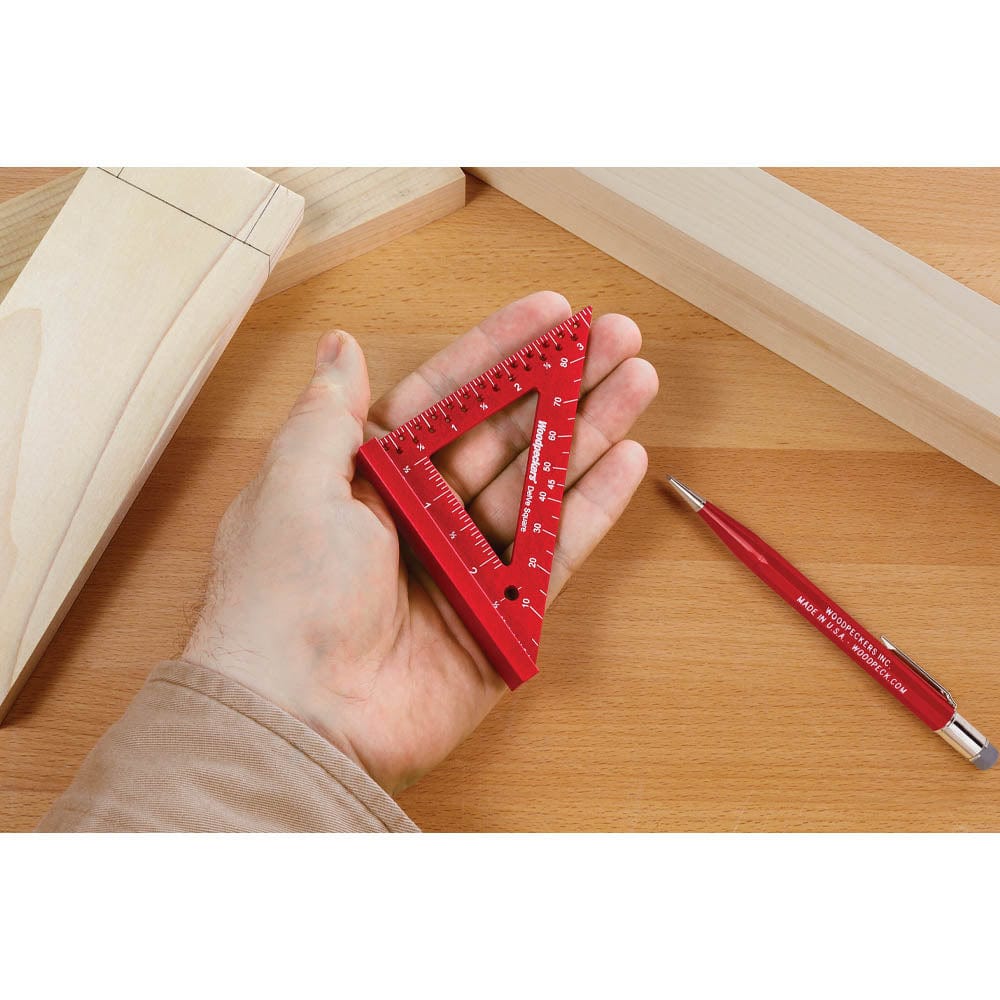

From the offset base to the scribing guides and set-up block functions, all the features that woodworkers love about the original have been preserved in the larger version. And since both are milled from aircraft-grade aluminum, you’ll hardly notice the weight of either one in your shop apron.

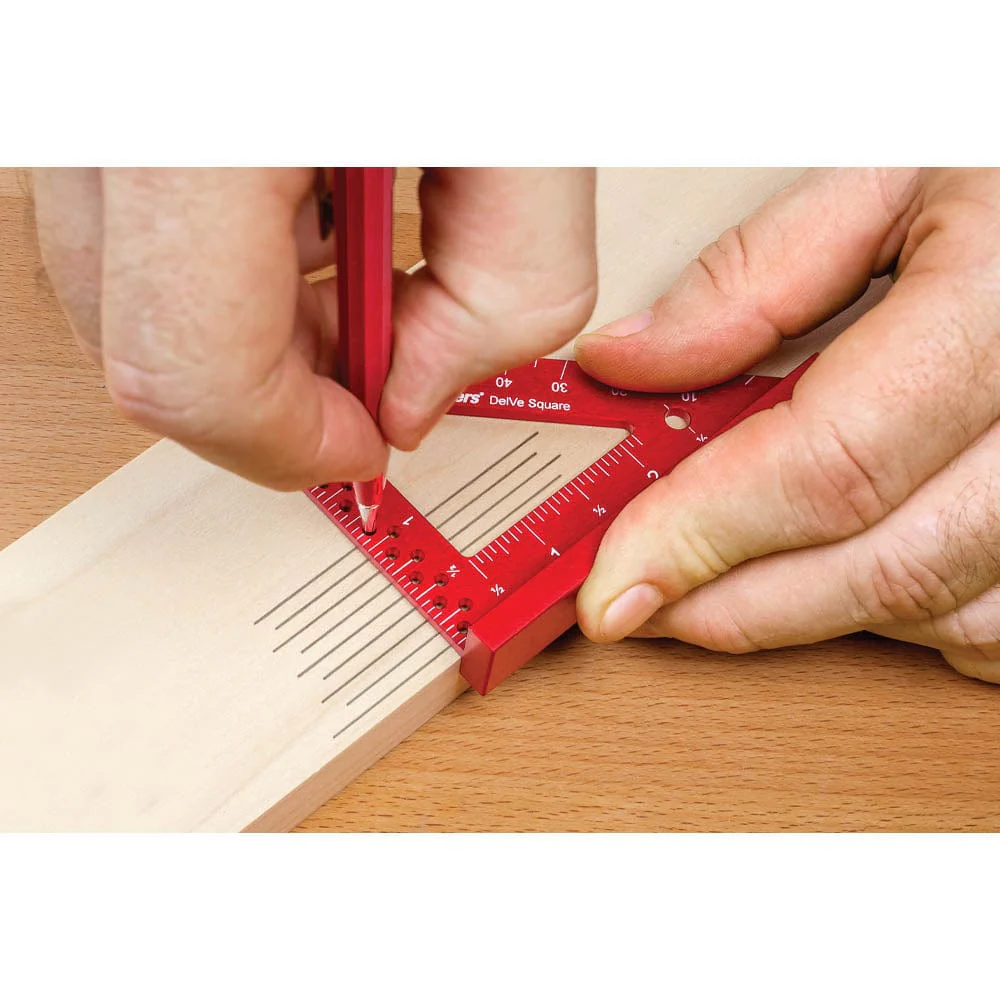

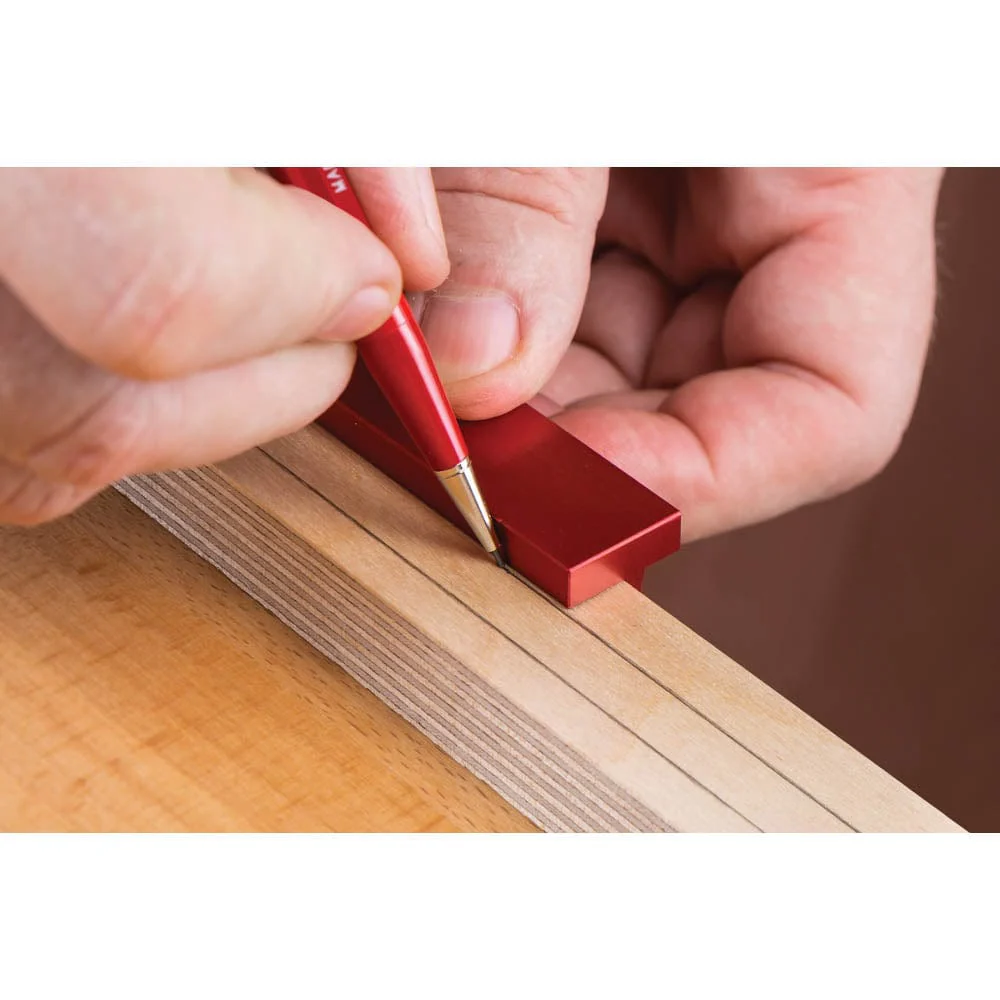

Its versatility makes the DelVe a trusted companion for layout, assembly and installation. Scales on the blade are laser-engraved to an accuracy of ± 0.004" total accumulated error. Precisely machined scribing guides on 1/8" centers enable you to strike lines parallel to the edge of your stock quickly and accurately. And the squareness of the DelVe is held to Woodpeckers’ stringent standard of ±.0085°.

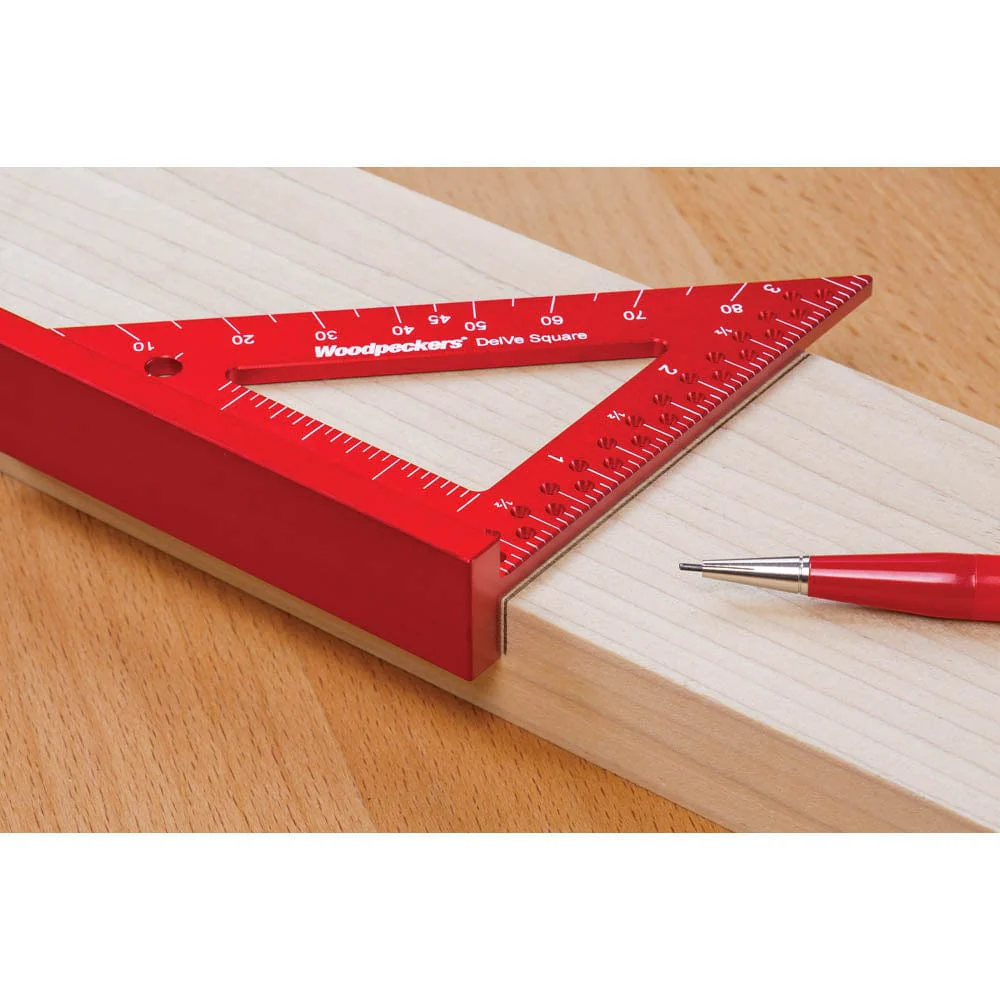

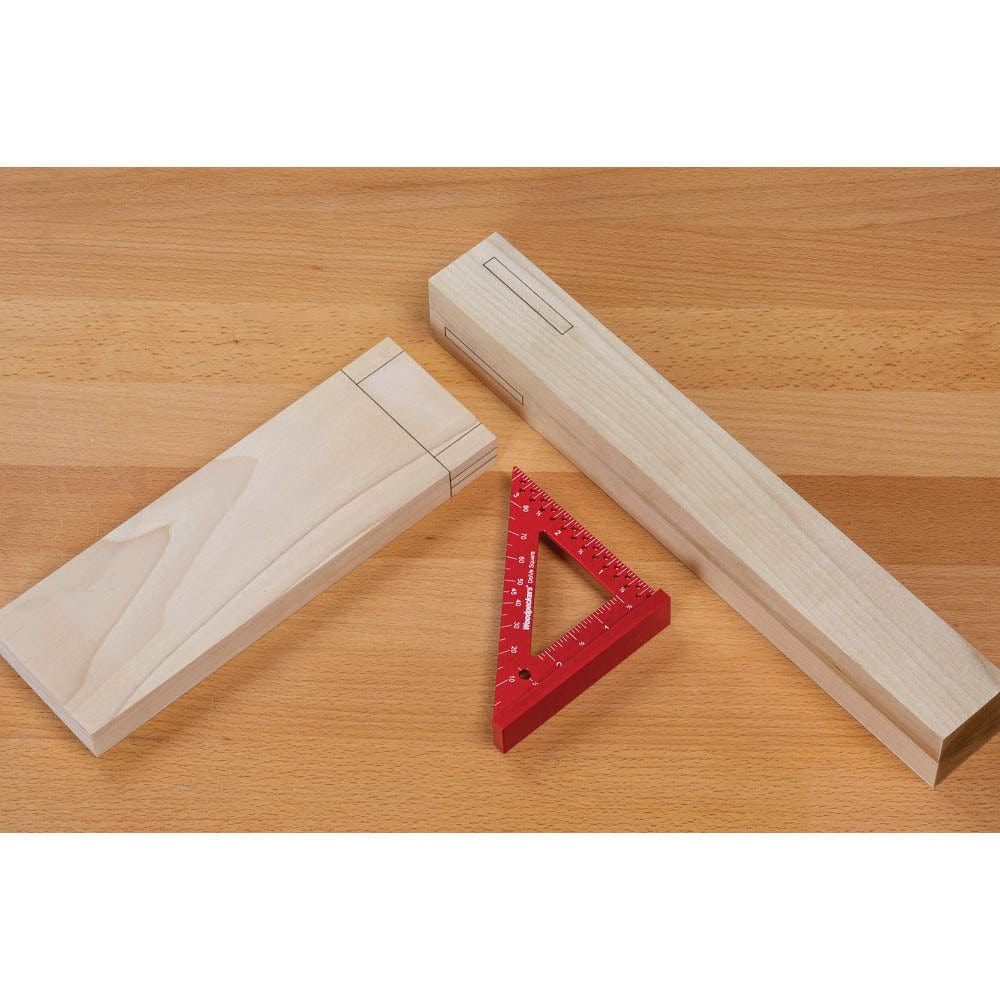

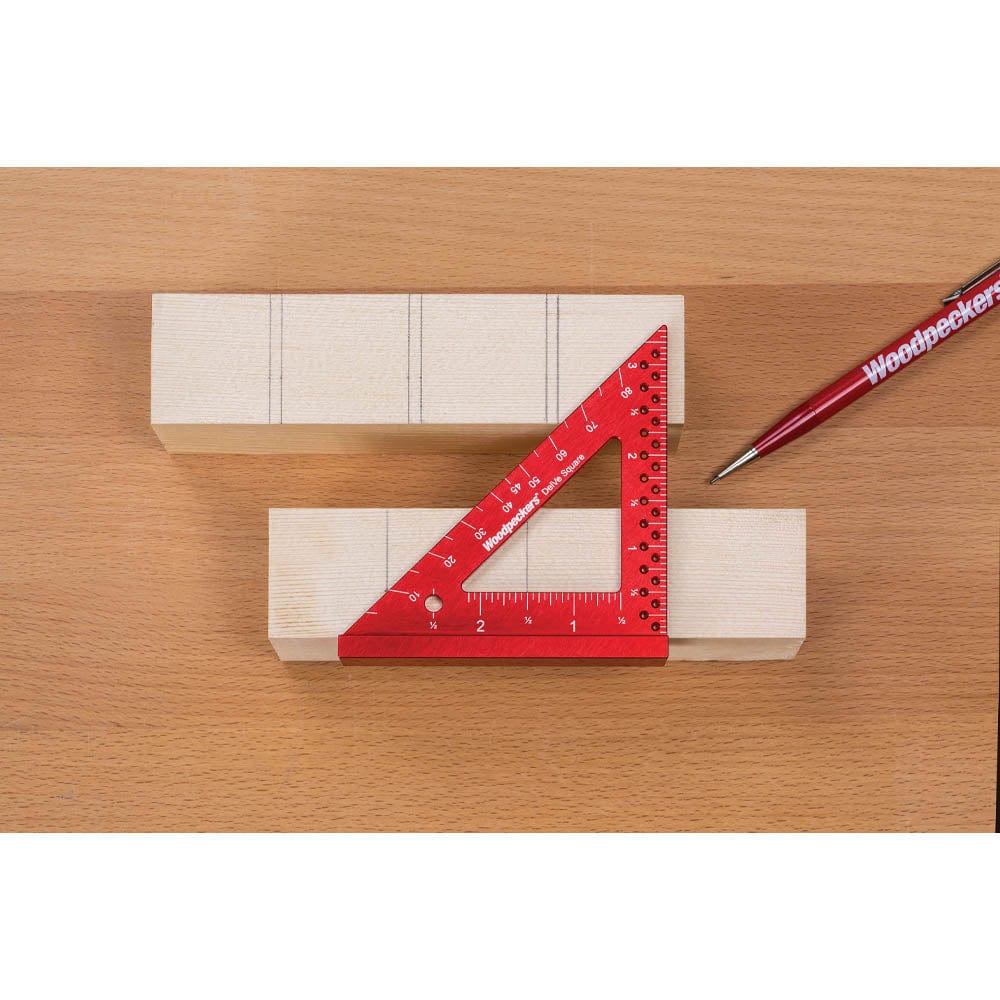

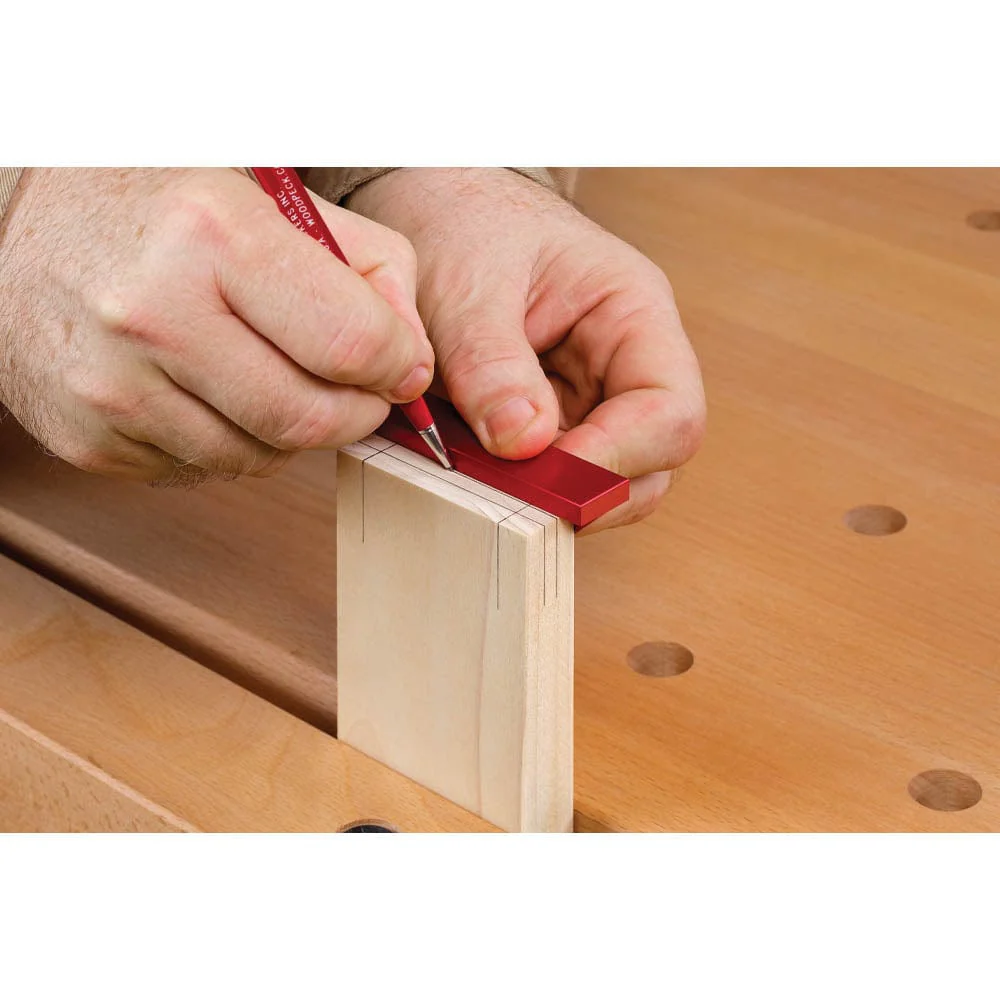

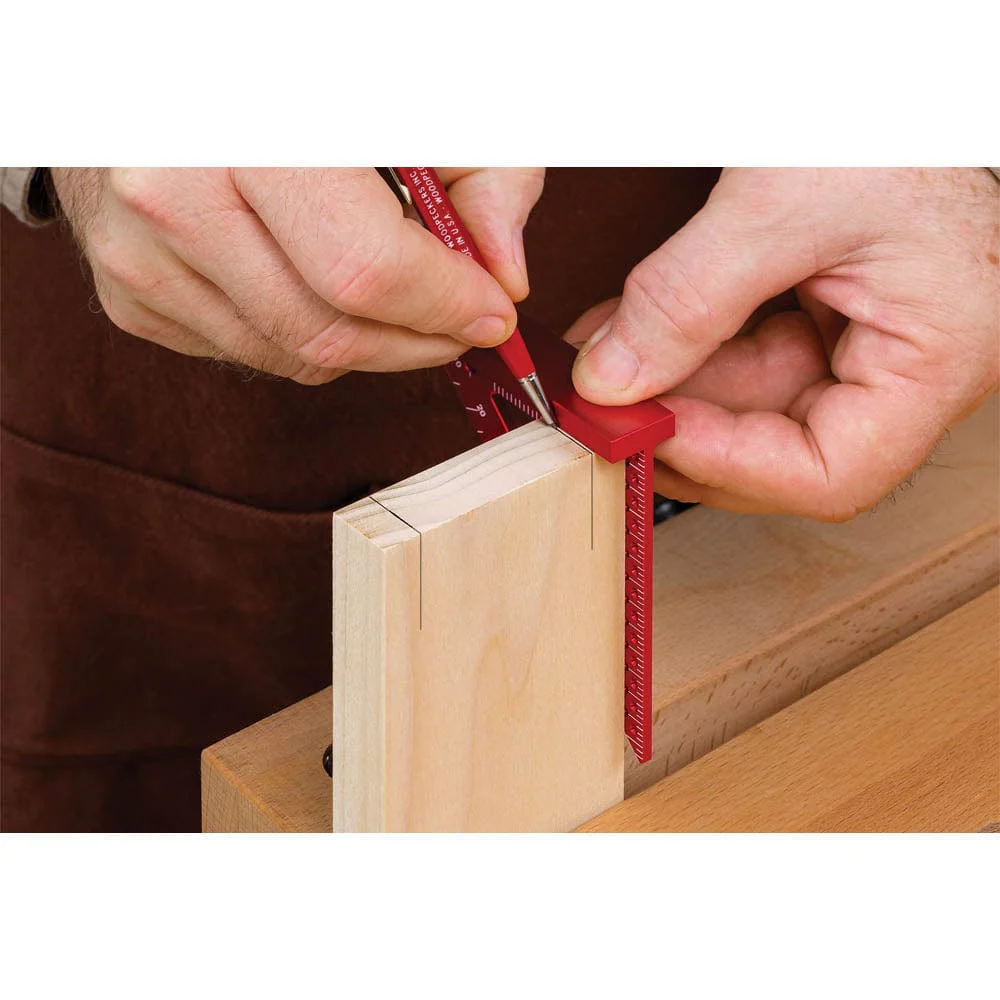

Easily lay out your project with DelVe Square’s array of references. The base is offset with 3/8" and 1/4" on either side of the blade which is perfect for 3/4" stock. You can easily mark 1/4" from both edges for a mortise or tenon, or flip it around to the 3/8" leg and quickly find the center. The DelVe Square’s base wraps around your workpiece making it simple to mark both the face and edge at the same time.


These are not just simply squares. In addition to the 45⁰ and 90⁰ edges, angles are graduated along the hypotenuse in 5° increments. Has additional graduations for octagonal layout at 22.5° and 67.5°.

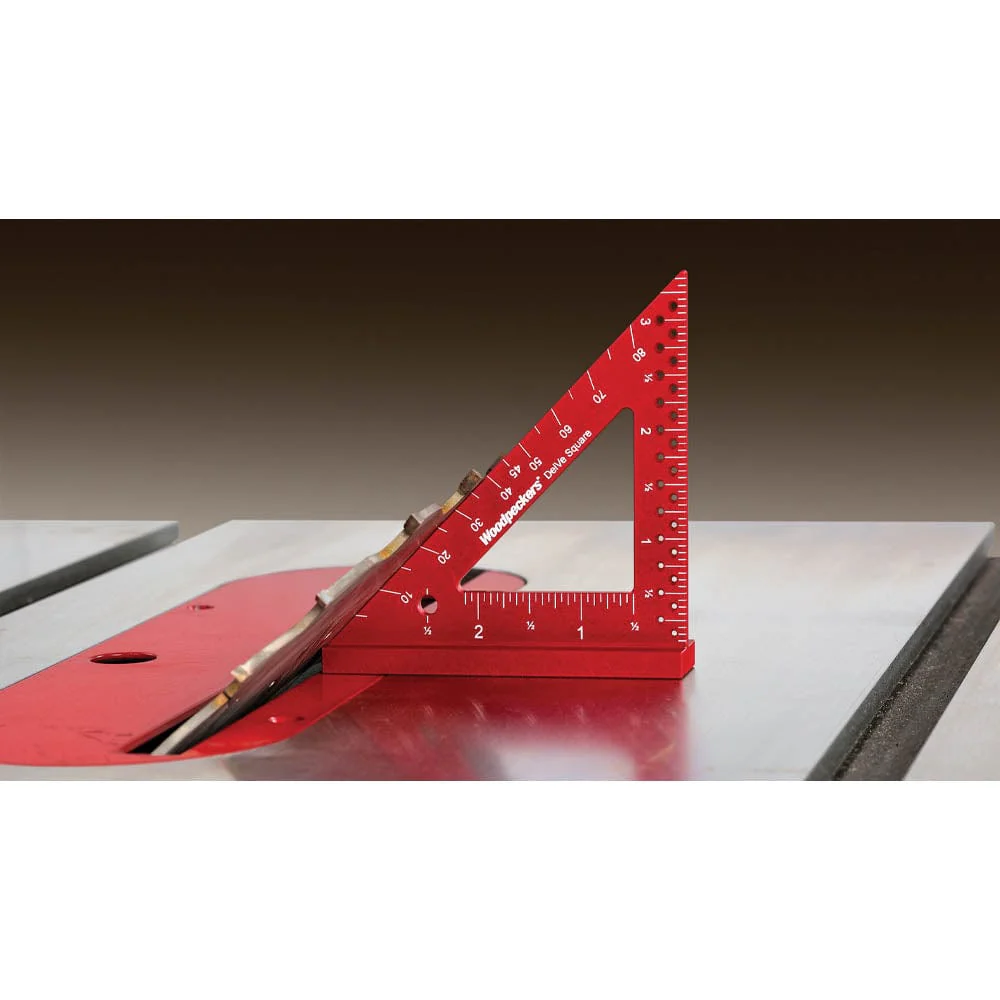

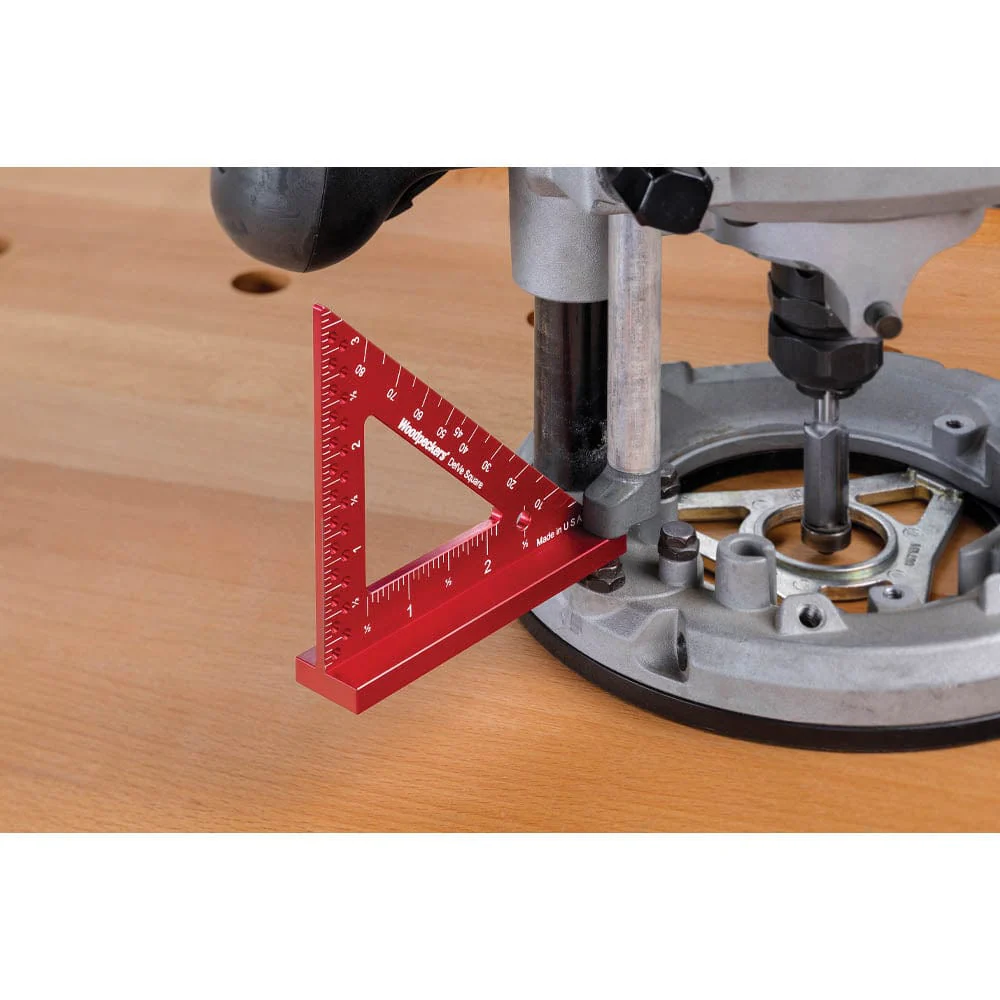

With a DelVe, you always have your go-to set-up blocks right at your fingertips. The base is 1/4" thick and 3/4" wide and the blade is 1/8" thick. Use whichever side you need for machinery set-up, joinery layout or other referencing chores.

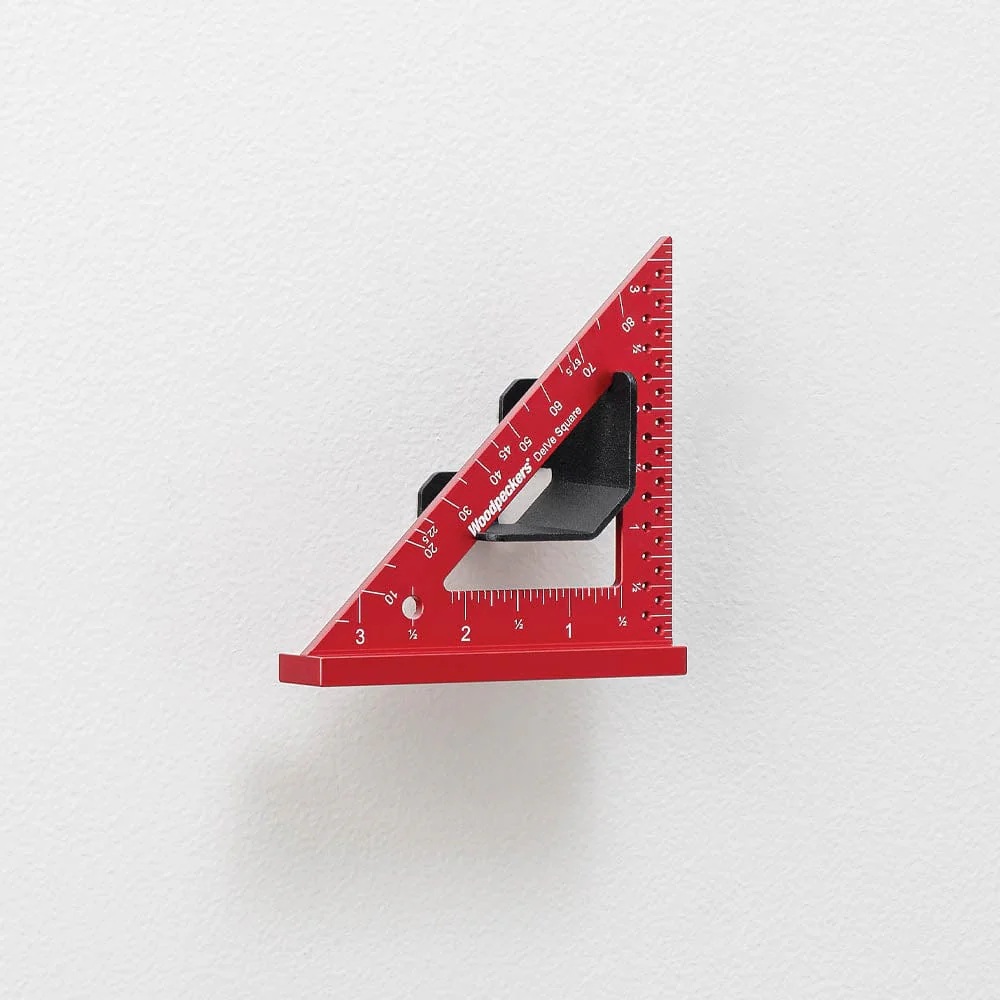

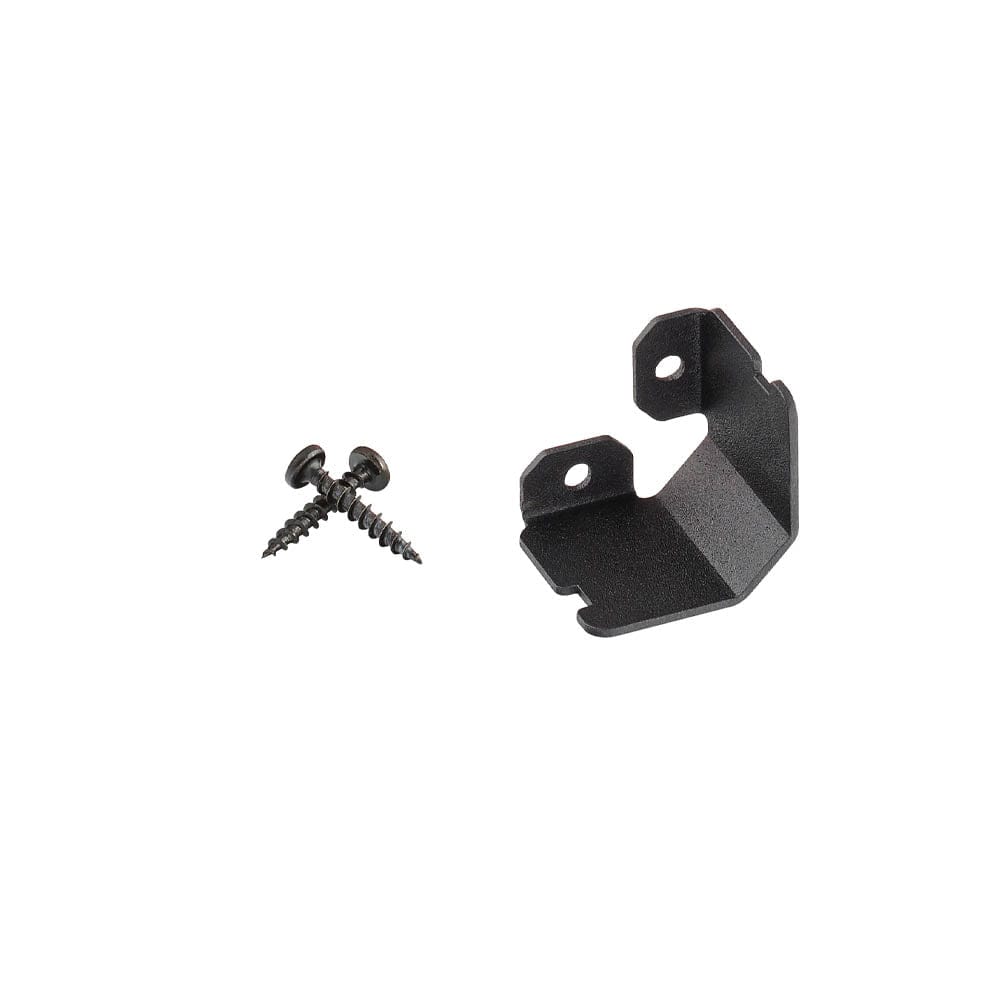

Includes a wall-mountable Rack-Itℱ so your square is safely stored in plain sight and ready to work. The DelVe Square¼ is precisely machined and carefully inspected in Woodpecker’s Strongsville, Ohio, manufacturing facility.


Features:



  • Milled from aircraft-grade aluminum and anodized for surface protection
  • Central cutouts that provide a precise 1/2" reference
  • Setup references on base: 1/4", 3/8", 3/4" and blade: 1/8"
  • Asymmetrical aluminum base split in 1/4" and 3/8" sides
  • Scribing guides every 1/8" on 90° edge
  • Hypotenuse edge calibrated in 5° increments with 22-1/2° and 67-1/2° markings added for an octagonal layout
  • Scales on the blade are laser-engraved to an accuracy of ± 0.004" total accumulated error
  • Square to a standard of ±.0085°
  • Rack-Itℱ included for wall mounting
  • Made in Strongsville, Ohio

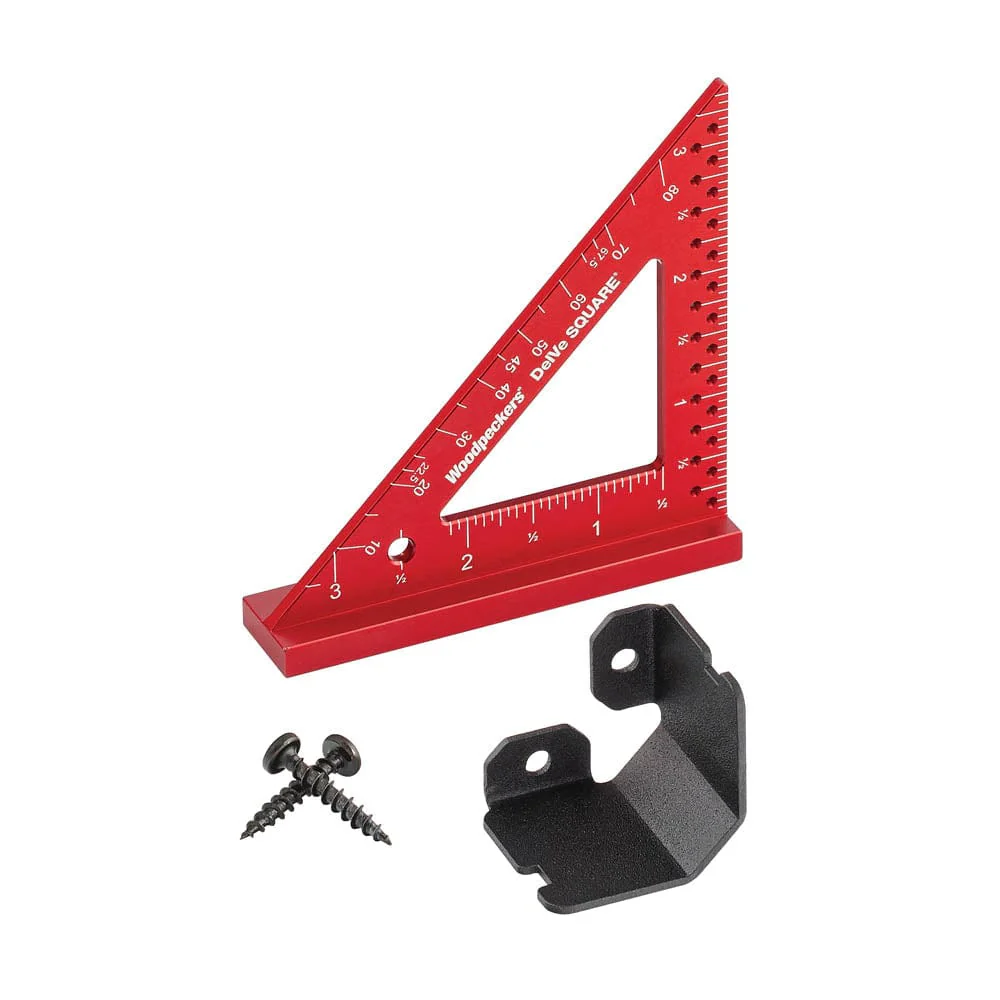

What’s Included:



  • (1) Woodpeckers 3.5" Aluminum DelVe SquareÂź
  • (1) Rack-Itℱ


$59.99
DelVe Square with Rack-It - Aluminum - 3-1/2"—
$59.99
